Thursday, June 17, 2010

Windows SharePoint Services 3 Search Error and Event ID:2424

This issue occurs when the service account for the Windows SharePoint Services Search service is configured to use the Network Service account And SharePoint Central Administration App Pool is not running on Network Service.

Following are the steps to resolved this issue....

A. Configure SharePoint Central Administration App Pool
1. Go to IIS Manager (inetmgr.exe)


2. Open Application Pools >  SharePoint Central Administartion > (Right Click) > Properties
3. In Properties > Click on Identity Tab > Select Predefined as Network Service. > Ok
4. Start Central Admin Site.

B. Configure Windows SharePoint Services 3 Search  Service
1. Go to Services (Start > Control Panel >Administrative Tools > Services)

2. Go to Peoperties of Windows SharePoint Services Search.
3. In Logon Tab Select Log on as: This Account .
4. Type a name as " NT AUTHORITY\LocalService " . No need to provide passwords keep it blank.
5.Click On OK and Restart the Service.

C. Configure Central Admin Site

1. Open Central Admin Site > Application Managment > (Search) Manage search service

2. In " Query and Index Servers " section click on " Microsoft Search Server Indexing and Query ".

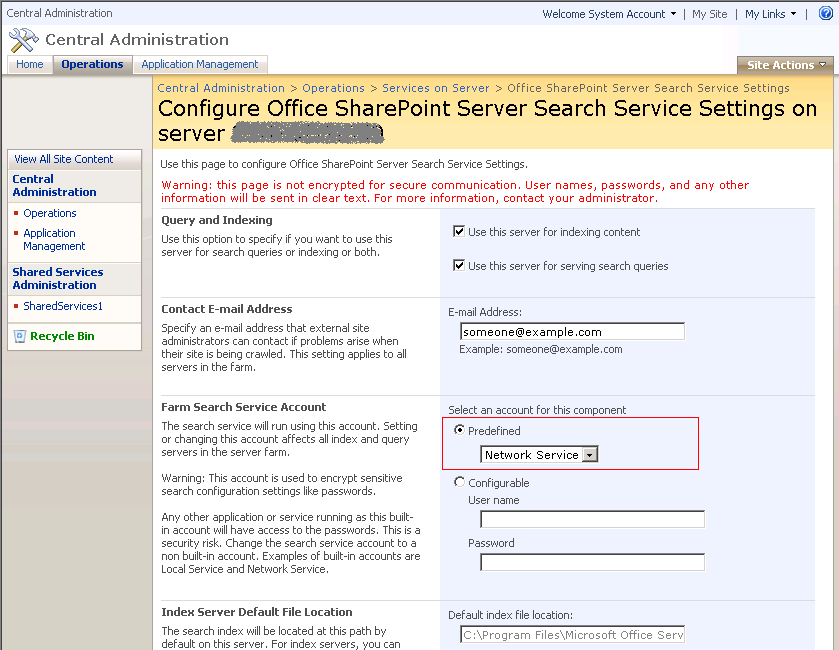

3. " Configure Office SharePoint Server Search Service Settings " page will be open.

4. Then in " Farm Search Service Account  " section , Select "Select an account for this component  " >
* Predefined > [Network Services].  >Click on OK.
5. Then Start Full Crawl from SharedServices.

---------Look at that our search is working fine!--------------------------------------------
Enjoy !





Monday, June 14, 2010

Good Design Websites

http://speckyboy.com/


http://www.logoed.co.uk/blog/

http://www.faveup.com/

http://www.logosauce.com/

http://www.logo-inspiration.de/

http://identityworks.com/

http://www.logolounge.com/

http://www.logotwo.com/

http://logopond.com/

Thursday, June 10, 2010

SharePoint Reports Query string in the xml soap format

For generating reports from SharePoint Lists, Query String is required.

I have mentioned some query string that fetch data from SharePoint .

1. Get All Data from SharePoint List
<Query> <Method Namespace="http://schemas.microsoft.com/sharepoint/soap/" Name="GetListItems">
<Parameters>
<Parameter Name="listName">
<DefaultValue>{List GUID}</DefaultValue>
</Parameter>
</Parameters>
</Method>
<SoapAction>http://schemas.microsoft.com/sharepoint/soap/GetListItems</SoapAction>
</Query>
 2. Get List Items Ordered by Date
 <Query>
<Method Namespace="http://schemas.microsoft.com/sharepoint/soap/" Name="GetListItems">
<Parameters>
<Parameter Name="listName">
<DefaultValue>{List GUID}</DefaultValue>
</Parameter>
<OrderBy><FieldRef name="ows_Date" /></OrderBy>
</Parameters>
</Method>
<SoapAction>http://schemas.microsoft.com/sharepoint/soap/GetListItems</SoapAction>
</Query>
 3. Get List Item from Title (Filtered Data)
<Query>
<SoapAction>http://schemas.microsoft.com/sharepoint/soap/GetListItems</SoapAction>
<Method Namespace="http://schemas.microsoft.com/sharepoint/soap/" xmlns="http://schemas.microsoft.com/sharepoint/soap/" Name="GetListItems">
<Parameters>
<Parameter Name="listName">
<DefaultValue>Contacts</DefaultValue>
</Parameter>
<Parameter Name="query" Type="xml">
<DefaultValue>
<Query>
<Where>
<Eq>
<FieldRef Name ="Title"/>
<Value Type="Text">-</Value>
</Eq>
</Where>
</Query>
</DefaultValue>
</Parameter>
<Parameter Name="rowLimit">
<DefaultValue> 9 </DefaultValue>
</Parameter>
</Parameters>
</Method>
<ElementPath IgnoreNamespaces="true"> GetListItemsResponse/GetListItemsResult/listitems/data/row{@ows_ID,@ows_Title} </ElementPath>
</Query>
 4.Get List Item from Item ID (Filtered Data)
<Query>
<SoapAction>http://schemas.microsoft.com/sharepoint/soap/GetListItems</SoapAction>
<Method Namespace="http://schemas.microsoft.com/sharepoint/soap/" xmlns="http://schemas.microsoft.com/sharepoint/soap/" Name="GetListItems">
<Parameters>
<Parameter Name="listName">
<DefaultValue>TicTacToe</DefaultValue>
</Parameter>
<Parameter Name="query" Type="xml">
<DefaultValue>
<Query>
<Where>
<Eq>
<FieldRef Name ="ID"/>
<Value Type="Integer">1</Value>
</Eq>
</Where>
</Query>
</DefaultValue>
</Parameter>
<Parameter Name="rowLimit">
<DefaultValue> 9 </DefaultValue>
</Parameter>
</Parameters>
</Method>
<ElementPath IgnoreNamespaces="true"> GetListItemsResponse/GetListItemsResult/listitems/data/row{@ows_ID,@ows_Title} </ElementPath>
</Query>

Wednesday, June 9, 2010

Exploring SharePoint Web Services

SharePoint Web Services Access

Refers to access to the built-in Web services included with Windows SharePoint Services 3.0 and Microsoft Office SharePoint Server 2007.

Real World Example

A developer wants to query list data from a SharePoint site periodically. She builds a tool that calls the built-in SharePoint list Web services to execute the query and get a result set.

Technical Details

The SharePoint environment includes built-in Web services that can be used to work with areas of the SharePoint object model remotely. Each Web application Web service is installed in the _vti_bin directory, which maps to the following file system location:

%COMMONPROGRAMFILES%\Microsoft Shared\web server extensions\12\ISAPI

The following Web services are provided in Office SharePoint Server 2007 Web applications.

Friendly Name

Location

Description

Alerts

/_vti_bin/alerts.asmx

Provides methods for working with alerts for list items in a SharePoint site.

Area Web service

/_vti_bin/areaservice.asmx

Deprecated Web service. Provides an area interface for remote clients.

Authentication Web service

/_vti_bin/Authentication.asmx

Provides ability for Web services to operate in conjunction with forms authentication.

BDC Fields Resolver Web service

/_vti_bin/bdcfieldsresolver.asmx

BDC Fields Resolver Web service for client applications. Reserved for internal use only.

BDC Web service

/_vti_bin/businessdatacatalog.asmx

Business Data Catalog metadata Web service. Reserved for internal use only.

CMS Content Area Toolbox Info Web service

/_vti_bin/contentAreaToolboxService.asmx

Designed for use by the Microsoft Office SharePoint Designer client to use.

Copy Web service

/_vti_bin/Copy.asmx

Provides methods for copying items between locations in the SharePoint environment.

List Data Retrieval Web service

/_vti_bin/DspSts.asmx

Provides a method for performing queries against lists in Windows SharePoint Services.

Document Workspace Web service

/_vti_bin/DWS.asmx

Provides methods for managing Document Workspace sites and the data they contain.

Excel Services Web service

/_vti_bin/ExcelService.asmx

Provides methods to call Excel Services remotely or to work as a callback for Web Parts.

Forms Web service

/_vti_bin/Forms.asmx

Provides methods for returning forms used in the user interface when working with the contents of a list.

Forms Services proxy Web service

/_vti_bin/FormsServiceProxy.asmx

Provides methods for Forms Services to proxy requests to remote data sources from Web-based forms.

Forms Services Web service

/_vti_bin/FormsServices.asmx

Provides methods to call Forms Services remotely or to work as a callback for Web-based forms.

Imaging Web service

/_vti_bin/Imaging.asmx

Provides methods that enable you to create and manage picture libraries.

Lists Web service

/_vti_bin/Lists.asmx

Provides methods for working with lists and list data.

Meetings Web service

/_vti_bin/Meetings.asmx

Provides methods that enable you to create and manage Meeting Workspace sites.

Official File Web service

/_vti_bin/officialfile.asmx

Provides methods for sending files to a records repository.

People Web service

/_vti_bin/People.asmx

Provides methods for working with security groups.

Permissions Web service

/_vti_bin/Permissions.asmx

Provides methods for working with the permissions for a site or list.

Published Links Web service

/_vti_bin/publishedlinksservice.asmx

Office system client applications and other applications can obtain the list of published links on the server that are targeted to the current user.

Publishing Service Web service

/_vti_bin/PublishingService.asmx

Provides methods to remotely work with the publishing service.

Search Web service

/_vti_bin/search.asmx

Allows access to Enterprise Search results from client applications and Web applications outside of the context of a SharePoint site.

SharePoint Directory Management Web service

/_vti_bin/sharepointemailws.asmx

Provides methods for remotely managing distribution groups.

Sites Web service

/_vti_bin/sites.asmx

Provides methods for returning information about the site templates for a site collection.

Slide Library Web service

/_vti_bin/SlideLibrary.asmx

Provides methods for slide library callbacks or remote publishing of slides.

Search Crawl Web service

/_vti_bin/spscrawl.asmx

Provides methods for remote Office SharePoint Server 2007 server farms to crawl a local farm.

Search Web service

/_vti_bin/spsearch.asmx

Provides methods for remotely performing searches within a Windows SharePoint Services deployment.

Users and Groups Web service

/_vti_bin/UserGroup.asmx

Provides methods for working with users, site groups, and cross-site groups.

User Profile Change Web service

/_vti_bin/userprofilechangeservice.asmx

Provides methods to query the user profiles change log remotely.

User Profile Web service

/_vti_bin/userprofileservice.asmx

Provides a user profile interface for remote clients.

Versions Web service

/_vti_bin/versions.asmx

Provides methods for working with file versions.

Views Web service

/_vti_bin/Views.asmx

Provides methods for working with views of lists.

Web Part Pages Web service

/_vti_bin/webpartpages.asmx

Provides the methods to send information to and retrieve information from Web services.

Webs Web service

/_vti_bin/Webs.asmx

Provides methods for working with sites and subsites.

Workflow Web service

/_vti_bin/workflow.asmx

Provides methods to work with workflows.

The SharePoint Central Administration Web application provides Web services in the _vti_adm directory that map to the following file system location:

%COMMONPROGRAMFILES%\Microsoft Shared\web server extensions\12\ADMISAPI

The following Web services are exposed within the Central Administration Web application. For reasons of helping to ensure security, these Web services are not available to call remotely from custom code in a hosted environment.

Friendly Name

Location

Description

Admin

/_vti_adm/admin.asmx

Provides methods for managing a deployment of Windows SharePoint Services, such as for creating or deleting sites.

Content Deployment Remote Import

/_vti_adm/ContentDeploymentRemoteImport.asmx

Provides methods for a remote server farm to use content deployment to get content into a local farm.

Depending on configuration, the Office Server Web Services Web application exposes the following internal Web services, which are not available for calls from custom code.

Friendly Name

Location

Description

Search Web service

SearchAdmin.asmx

Office SharePoint Server 2007 Search Administration Web service.

Search Application Web service

/SSP/Search/SearchAdmin.asmx

Office SharePoint Server 2007 Search Application Administration Web service.

Excel Service SOAP

/SSP/ExcelCalculationServer/ExcelService.asmx

Office SharePoint Server 2007 Excel Services Application Web service.
